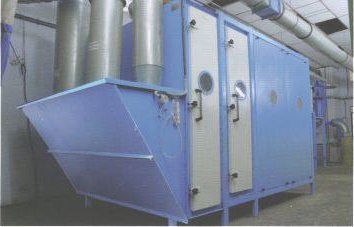

Waste Collection System Continous - Intermittent
An Ideal Solution For Fibre Waste Collection & Dust Air Filtration
For Clean air and recovering valuable materials Coimbatore Air Control Systems Offers a modular systems of filter plants. First quality material, high technology level and much attention to any detail. We provide reliable solutions for dust filtration, waste removal, collection and separation with the most competitive equipments to every air filtration systems. Whatever your specific dust air filtration, waste collection requirements may be, Coimbatore Air Control Systems provides you the true solutions.
GINNING, BLOWING, CARDING, COMBING
- Automatic continuous waste removal.
- Intermittent waste removal.
- Dust extraction.

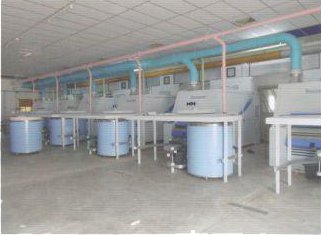

- Open end trash collection system.
- Pneumafil suction system.
- Customized solution.

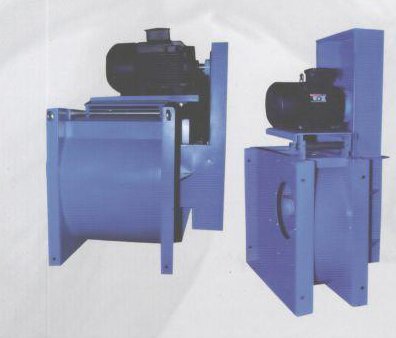

TRANSPORT FANS
Open radial blades, direct and belt driven material transport fans are accurately cleaned, edge smoothed with tighter balancing level. High pressure fans and air-foil blade products for waste and dust transportation. Depending on the requirement various type of fans are available.
PRIMARY FILTER
Waste fibres from blow room and carding will be filtered in the continuously rotating disc type primary filter. It separates fibres and course particles by using a filter media. The separate fibres and course particles are taken to a fibre compactor with conveying fans. There particles are delivered zero pressure.
SECONDARY FILTER
A continuous self cleaning drum filter, separates any dust still remaining in the air stream. The airflow through the filter drum is from inside to the outside. The dust collect in the filter media, is continuously cleaned by rotating and traversing nozzles and passed to a cyclone separator. The separated dust particles are ejected by a screw conveyor at zero pressure.
ADVANTAGES OF WASTE COLLECTION SYSTEM
- Enhances production.
- Avoids manpower.
- Pollution free environment.
- Separation of different waste quality..
- Provides the required pressure level at the machines.
SERVICES
- Full support in filtration plant design..
- Installation and start-up.
- Detail documents for maintenance plan.
- Efficiency and safety operation.
- Skilled technician's team.

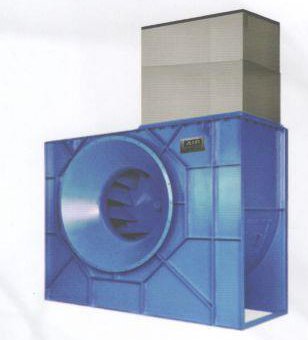

HIGH EFFICIENCY CENTRIFUGAL FAN
We produce the energy efficient centrifugal blowers. The various type of energy efficient blowers are available to handle the required air volume and static pressure with lowest possible power. We produce low, medium, high capacity fans in single inlet and double inlet.

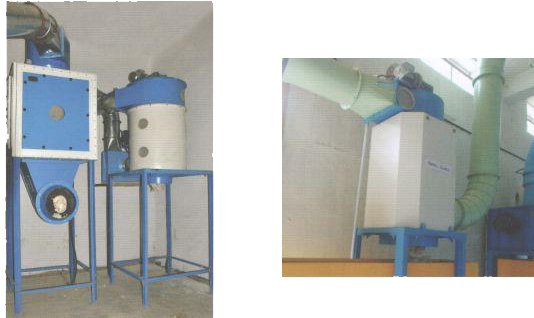

FIBRE SEPARATOR & COMPACTORS
The airstream carrying course particles enters the unit at the top, then passes through a perforated sheet metal cone or filter media.The course particles accumulated on the inside of the perforated sheet metal cone or filter media are continuously stripped off by an screw conveyor, compacted and discharged at zero pressure at the bottom.

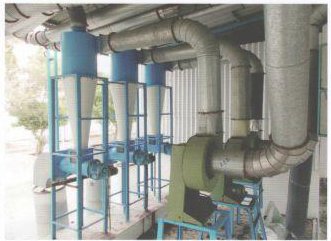

CYCLONE SEPARATOR
The air stream carrying fine particles enter the cyclone separator tangentially at the top. The fine dusts are carried to the outside by the rotating centrifugal airflow and passes spirally either to the collecting container or to the dust compactor. Cyclone separators are having great advantages for open end trash collection and fine dust separation

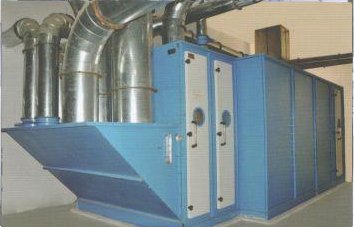

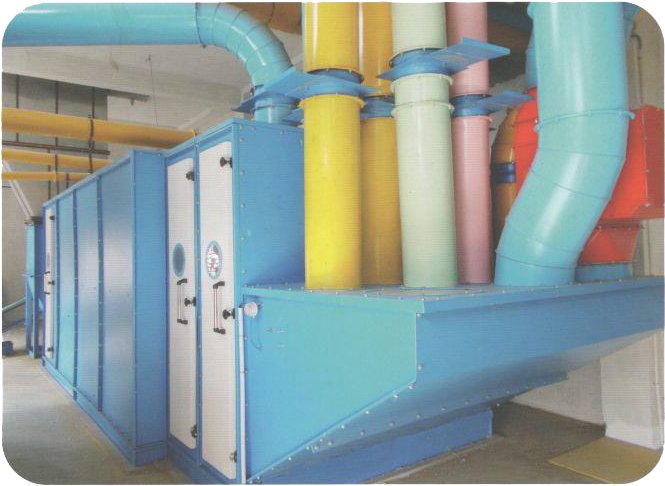

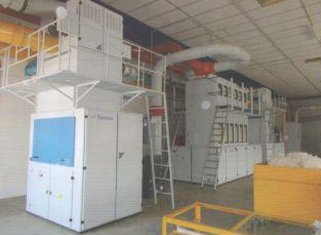

BLOW ROOM AND CARDING WASTE COLLECTION SYSTEMS
